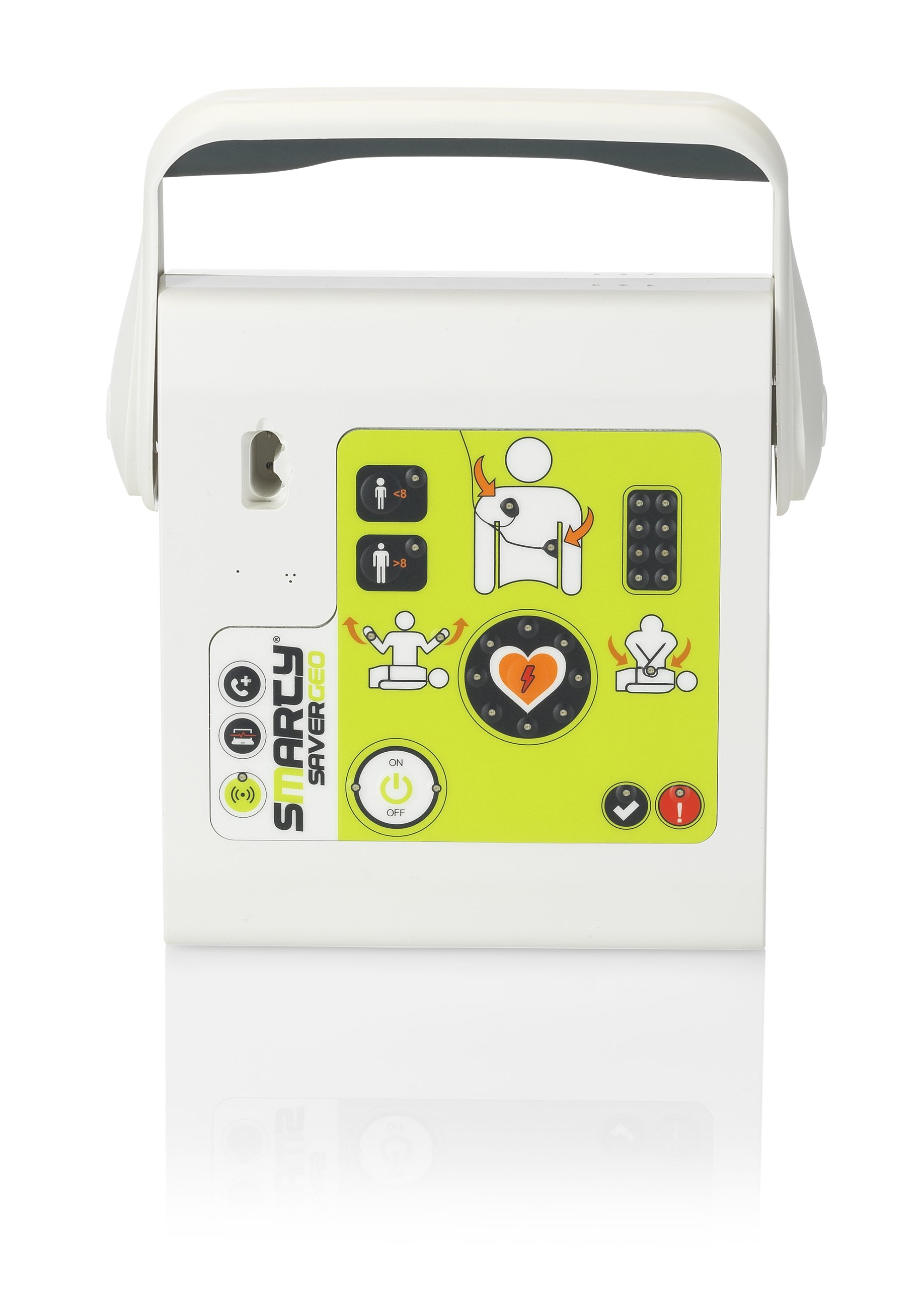

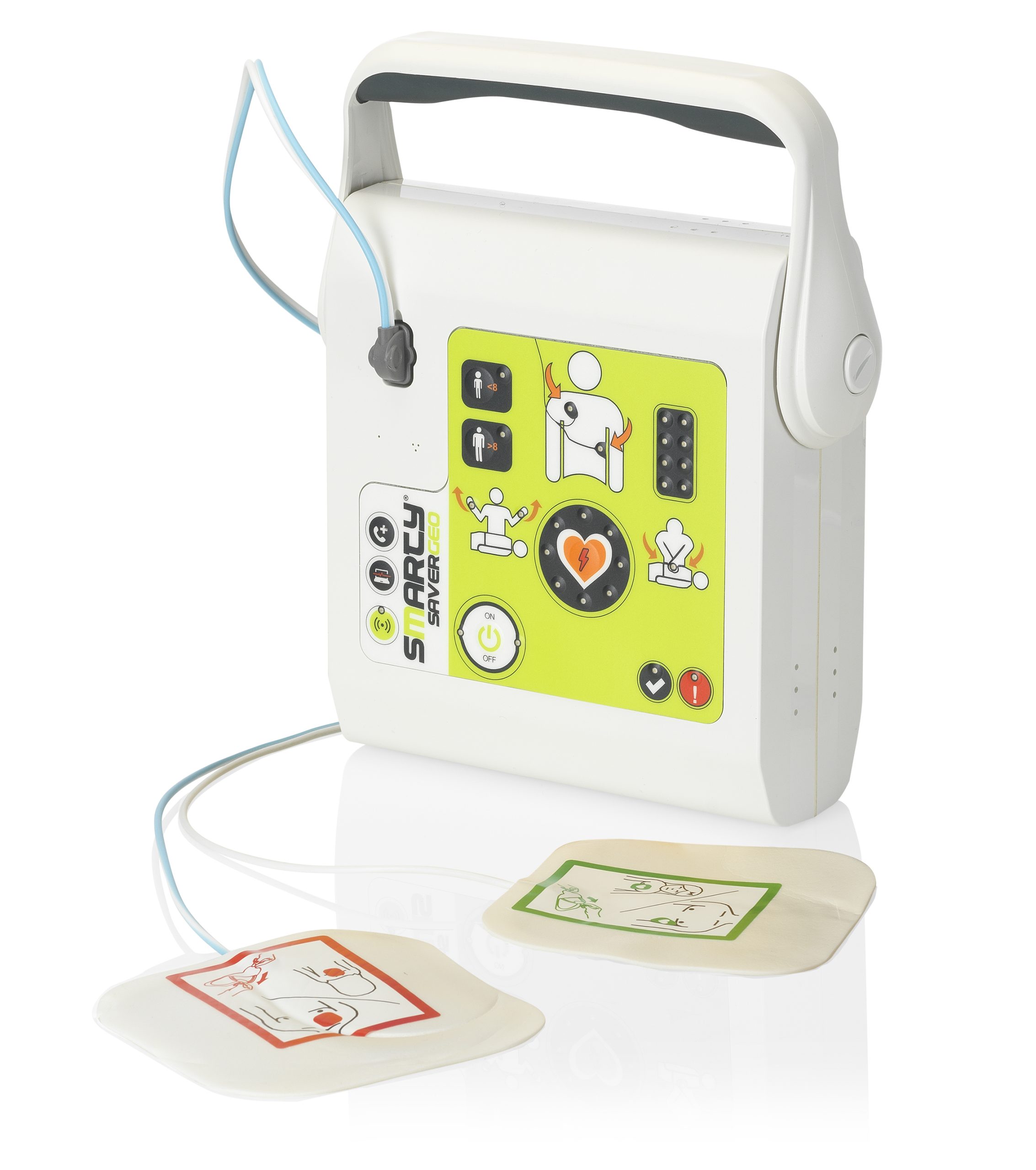

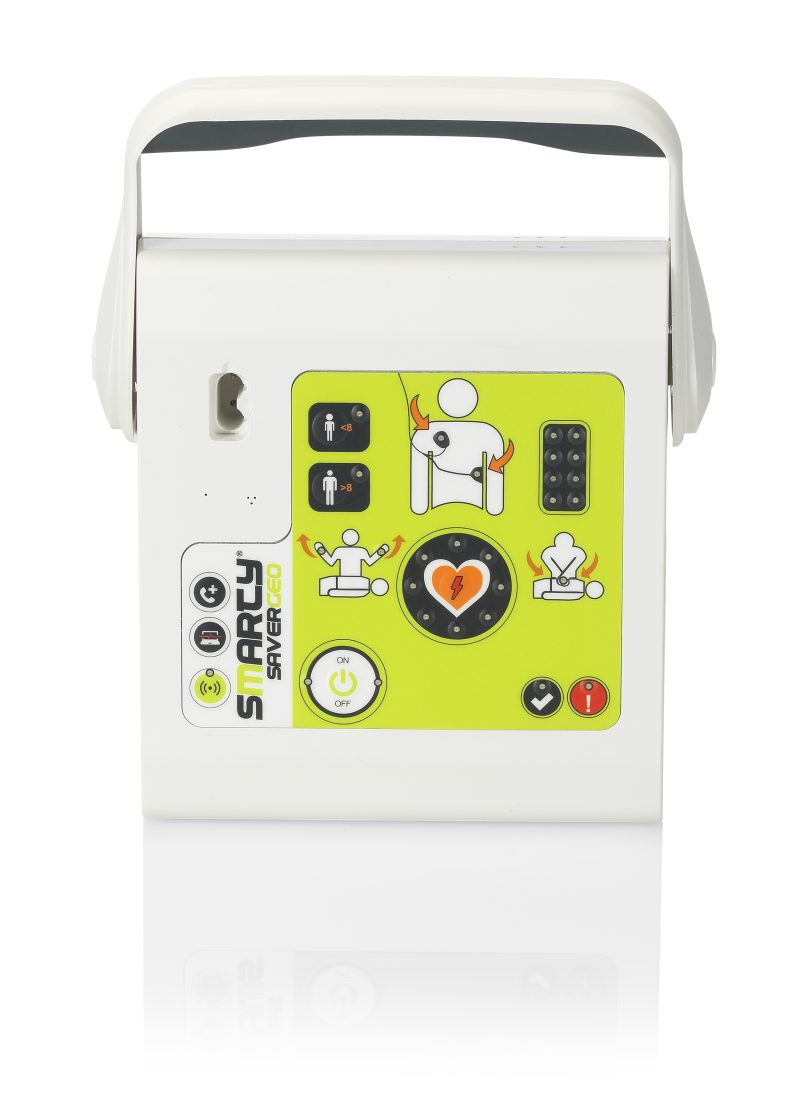

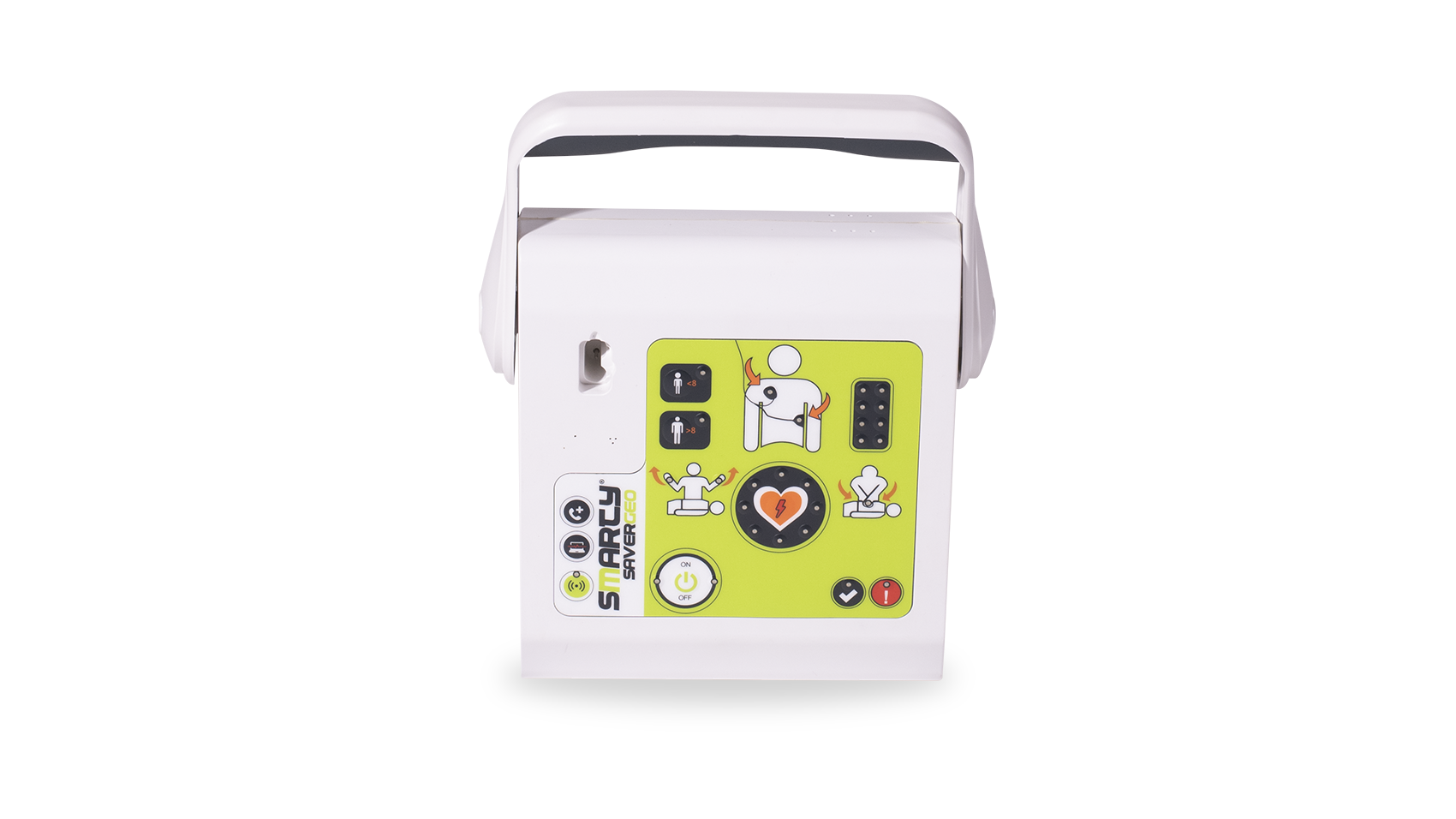

SMARTY SAVER GEO
SMARTY SAVER GEO
Semi-Automatic SM5-B1005
Fully automatic SM6-B1006
Geolocation and Quality CPR
The integrated SIM card allows the device to transmit and receive data through the mobile phone network. The battery power supply dedicated to geo location module is autonomous and additional to the one dedicated to the basic functionality as defibrillator. All the info is sent by the device to the AMISAVERCLOUD PLATFORM, which is conceived to monitor and control multiple AEDs by remote through any web browser and internet connected device. Among the info and data sent to the platform, the AED can transmit the ECG in real time hence a professional operator will be able to view and examine the ECG by remote on the AMISAVERCLOUD PLATFORM. Finally through the dedicated VIVO BUTTON located on the keyboard the operator will be free to call the local EMS straight away directly from the AED!
Technical specifications
| DEFIBRILLATOR | |
| Model: | Code SM5-B1005: Semi-Automatic Code SM6-B1006: Fully Automatic |
| Maximal Energies: | 200J (nominal) |
| Waveform: | Biphasic truncated exponential (BTE) automatically adapts according to patient’s impedance |
| Discharge protocol: | Adult: incremental first shock 150J – subsequent 200J Paediatric: fixed 50J |
| Charging time from shock alert: | IEC/EN 60601-2-4 ≤ 9 sec with shock at 150J ≤ 12 sec with shock at 200J |
| Charging time from analysis time: |
IEC/EN 60601-2-4 ≤ 13 sec with shock at 150J ≤ 16 sec with shock at 200J |
| Analysis time: | IEC/EN 60601-2-4 from 4 to 15 seconds |
| Impedance range: | 20-200 Ohms |
| Sensitivity: | 97% (IEC/EN 60601-2-4) |
| Specificity: | 99% (IEC/EN 60601-2-4) |
| Controls: | Semi-automatic – 6 buttons: ON/OFF, shock delivery, patient selection (adult/child), live call, ECG streaming Fully Automatic – 5 buttons: ON/OFF, patient selection (adult/child), live call, ECG streaming |
| Light indicators: | – Device status: 2 LEDs red/green – PADs placement: 2 red LEDs – Do not touch the patient: 2 red LEDs – Touch the patient: 1 green LED – Adult patient: 1 green LED – Paediatric patient: 1 green LED – ON/OFF button: 2 green LEDs – Shock button: 8 red LEDs – CPR Quality feedback 8 LED bar: 2 red + 2 orange + 2 yellow +2 green – Q-CPR module connection: 1 green fixed LED – ECG streaming: 1 green blinking LED |
| Upgradeable: | Through a USB cable, external memory card or remotely |
| PHYSICAL | |
| Size: | 200x213x71mm (folded handle) 257x213x71mm (open handle) |
| Weight: | 1,70 Kg (with battery and defibrillation PADs) |
| EVENT RECORDING | |
| Optional external memory: | Micro uSD/SDHC card up to 32GB |
| Stored data: | “AED1LOG.txt”: text file with detailed report of the activities of self-test and power-ups “AEDFILE.aed”: ECG trace, rescue events, voices and background audio |
| “AEDFILE.aed”review: | Through data manager software “SaverViewExpress“ |
| DEFIBRILLATION PADS | |
| Type: | Code SMT-C2001: Disposable, universal, pre-gelled, preconnected |
| Shelf-life: | 4 years, as indicated on the packaging |
| Type: | Code SMT-C2002: Disposable, universal, pre-gelled, preconnected, Face-to-Face |
| Shelf-life: | 24 months, as indicated on the packaging |
| Dimensions: | Total surface 136cm²; active surface 94cm²; 120cm cable length (external to the packaging) |
| BATTERY OPTIONS | |
| Type: | Contained in SMT-C14032 |
| Voltage/capacity: | 12VDC-3000mAh |
| Autonomy: | Up to 200 complete rescue cycles (200J shocks + CPR); Up to 36 hours of continuous ECG analysis |
| Stand by life: | Up to 3 years with a battery insertion test and daily self-test without any turning on the AED |
| ENVIRONMENTAL SPECIFICATION | |
| Operating temperature: | 0°C to 45°C (32°F to 113°F) |
| Storing/Shipping temperature: | -40°C to 70°C (-40°F to 158°F) |
| Humidity: | 10% to 95% relative humidity without condensation |
| Sealing (IP Protection): | IEC/EN 60529: class IP56 |
| Shock/Drop Endurance: | IEC/EN 60601-1 (compliant to 1 m. Drop Test) |
| Electrostatic Discharges: | IEC/EN 61000-4-2 |
| Electromagnetic Compatibility: | IEC/EN 60601-1-2:2015 |
| Protection from defibrillation: | IEC/EN 60601-1; device internally powered, Type BF |
| Classification: | MDR (EU) 2017/745 Class III, Annex VIII, Rule 22 |
| Q-CPR EXTERNAL MODULE | |
| Description: | Code SMT-C14034 – External module to support CPR paired with the AED via Bluetooth; Class I Medical Device |
| Weight and Dimension: | 95 x 60 x 13mm; 50gr |
| Compression guidance: | According to AHA/ERC guidelines for both adult and paediatric patients |
| Controls and light icons: | Ignition key ON/OFF Green flashing LED: Bluetooth signal search Green fix LED: Bluetooth connection active |
| Battery: | Code: SMT- C14035 |
| Type: | Battery Coin |
| Voltage/capacity: | 3 VDC / 1Ah |
| Autonomy: | up to 2 hours in continued use |
| Radio Equipment compliance: | Directive 2014/53/UE- RED |
| GEOLOC MODULE | |
| Frequency: | GSM: 850, 900, 1800, 1900MHz; UMTS: 900, 2100MHz; GPS: 1575, 1600MHZ |
| Battery type: | Contained in SMT-C14032 |
| Voltage/capacity: | 10,8 VDC- 3500 mAh |
| Performance: | Geo-location, remote control of the device, live call, ECG streaming |
| Radio Equipment compliance: | RED- Directive 2014/53/UE |
