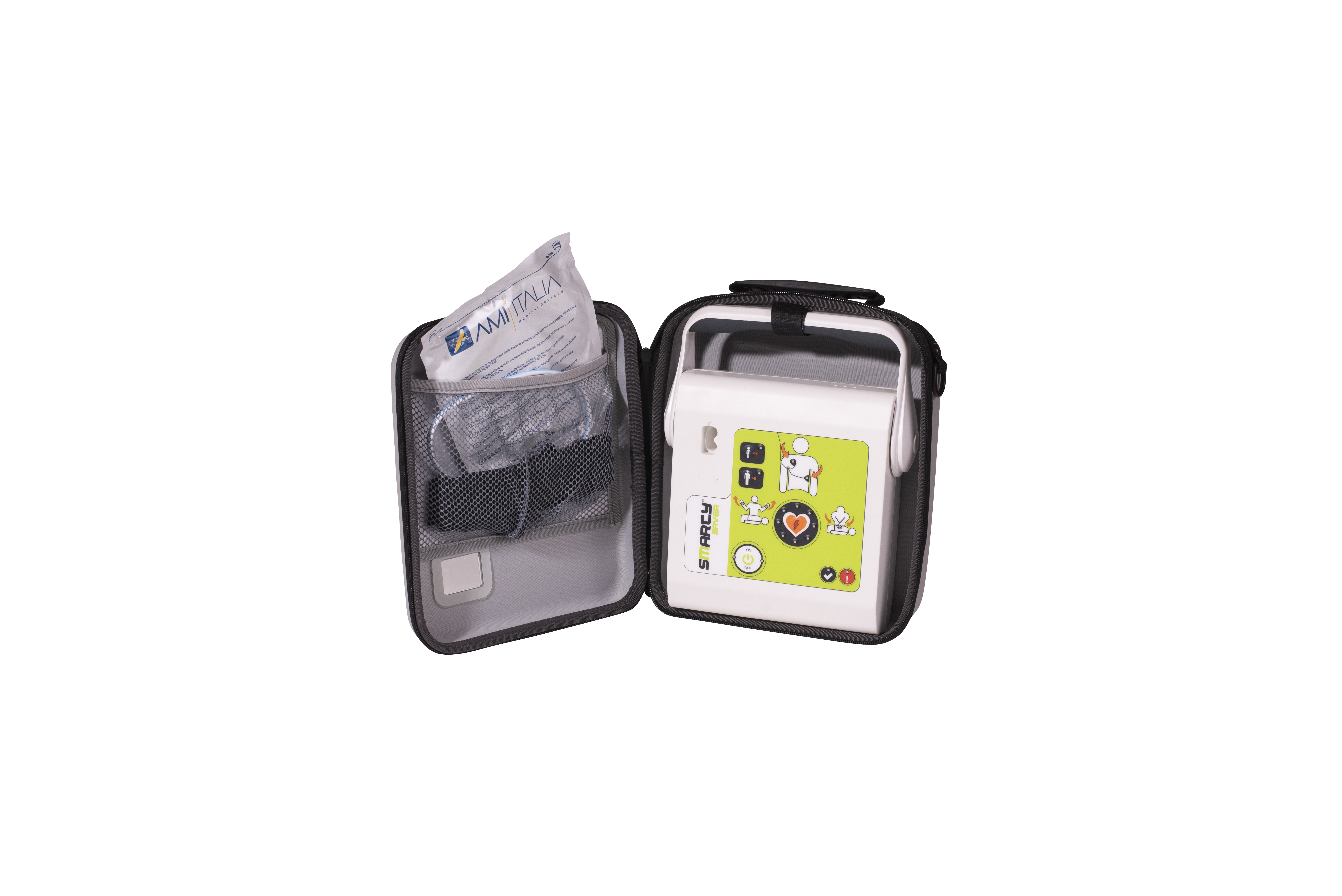

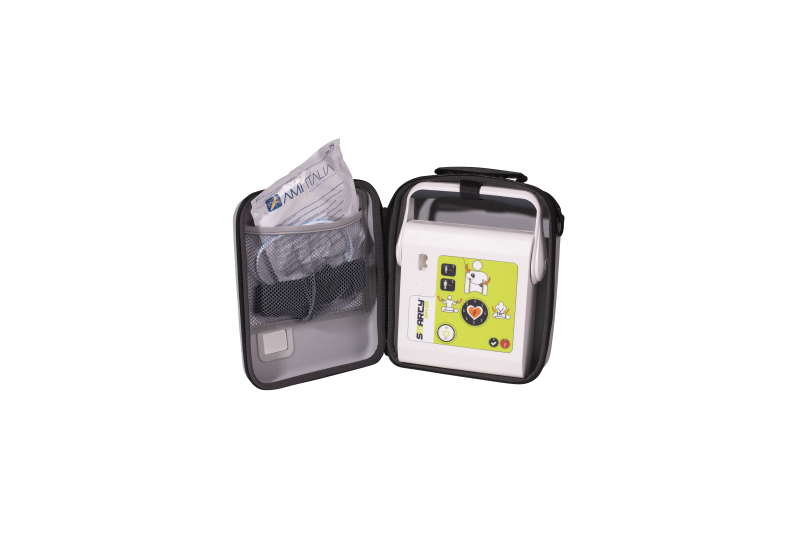

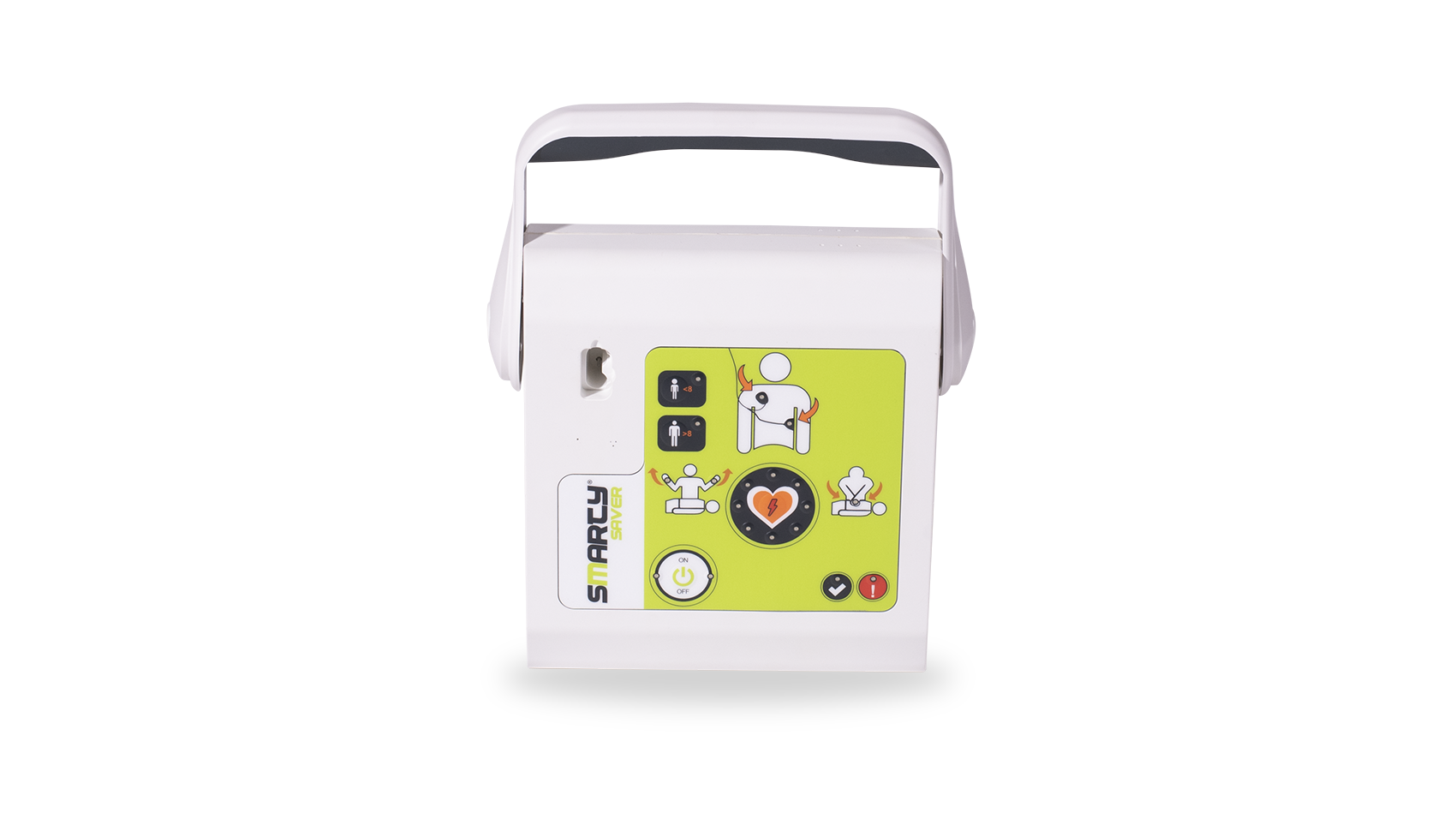

SMARTY SAVER PLUS
17 January 2020Semi-Automatic SM1-B1001
Fully automatic SM2-B1002
The Semi-Automatic model, after checking the patient’s ECG, if a shockable rhythm is detected, then the device automatically starts charging the reservoir capacitor. Once ready for the shock, the operator will need to push the shock button to defibrillate. Then the CPR phase starts through voice message and metronome.
The Fully Automatic model, once ready for the shock will automatically deliver the defibrillation shock after 5 second according to the vocal prompt.
Technical specifications
DEFIBRILLATOR | |
Model: | Code SM1-B1001: Semi-Automatic Code SM2-B1002: Fully Automatic |
Maximal Energies: | 200J (nominal) |
Waveform: | Biphasic truncated exponential (BTE) automatically adapts according to patient’s impedance |
Discharge protocol: | Adult: incremental first shock 150J – subsequent 200J Paediatric: fixed 50J |
Charging time from shock alert: | IEC/EN 60601-2-4 ≤ 9 sec with shock at 150J ≤ 12 sec with shock at 200J |
Charging time from analysis time: |
IEC/EN 60601-2-4 ≤ 13 sec with shock at 150J ≤ 16 sec with shock at 200J |
Analysis time: | IEC/EN 60601-2-4 from 4 to 15 seconds |
Impedance range: | 20-200 Ohms |
Sensitivity: | 97% (IEC/EN 60601-2-4) |
Specificity: | 99% (IEC/EN 60601-2-4) |
Controls: | Semi-automatic – 4 buttons: ON/OFF, shock delivery, patient selection (adult/child) Fully Automatic – 3 buttons: ON/OFF, patient selection (adult/child) |
Light indicators: | – Device status: 2 LEDs red /green – PADs placement: 2 red LEDs – Do not touch the patient: 2 red LEDs – Touch the patient: 1 green LED – Adult patient: 1 green LED – Paediatric patient: 1 green LED – ON/OFF button : 2 green LEDs – Shock button: 8 red LEDs |
Upgradeable: | Through a USB cable or external memory card |
PHYSICAL | |
Size: | 200x213x71mm (folded handle) 257x213x71mm (open handle) |
Weight: | 1,56 Kg (with battery and PADs) |
EVENT RECORDING | |
Optional external memory: | Micro uSD/SDHC card up to 32GB |
Stored data: | “AED1LOG.txt”: text file with detailed report of the activities of self-test and power-ups “AEDFILE.aed”: ECG trace, rescue |
“AEDFILE.aed”review: | Through data manager software “SaverViewExpress“ |
DEFIBRILLATION PADS | |
Type: | Code SMT-C2001: Disposable, universal, pre-gelled, preconnected |
Shelf-life: | 4 years, as indicated on the packaging |
Type: | Code SMT-C2002: Disposable, universal, pre-gelled, preconnected, Face-to-Face |
Shelf-life: | 24 months, as indicated on the packaging |
Dimensions: | Total surface 136cm²; active surface 94cm²; 120cm cable length (external to the packaging) |
BATTERY OPTIONS | |
Type: | Code SMT-C14031 |
Voltage/capacity: | 12VDC-3000mAh |
Autonomy: | Up to 200 complete rescue cycles (200J shocks + CPR); Up to 36 hours of continuous ECG analysis |
Stand by life: | Up to 3 years with a battery insertion test and daily self-test without any turning on the AED |
Type: | Code SMT-C14033 |
Voltage/capacity: | 12VDC-5600mAh |
Autonomy: | Up to 350 complete rescue cycles (200J shocks + CPR); Up to 100 hours of continuous ECG analysis |
Stand by life: | Up to 4 years with a battery insertion test and daily self-test without any turning on the AED |
ENVIRONMENTAL SPECIFICATION | |
Operating temperature: | 0°C to 45°C (32°F to 113°F) |
Storing/Shipping temperature: | -40°C to 70°C (-40°F to 158°F) |
Humidity: | 10% to 95% relative humidity without condensation |
Sealing (IP Protection): | IEC/EN 60529: class IP56 |
Shock/Drop Endurance: | IEC/EN 60601-1 (compliant to 1 m. Drop Test) |
Electrostatic Discharges: | IEC/EN 61000-4-2 |
Electromagnetic Compatibility: | IEC/EN 60601-1-2:2015 |
Protection from defibrillation: | IEC/EN 60601-1; device internally powered, Type BF |
Classification: | MDR (EU) 2017/745 Class III, Annex VIII, Rule 22 |
