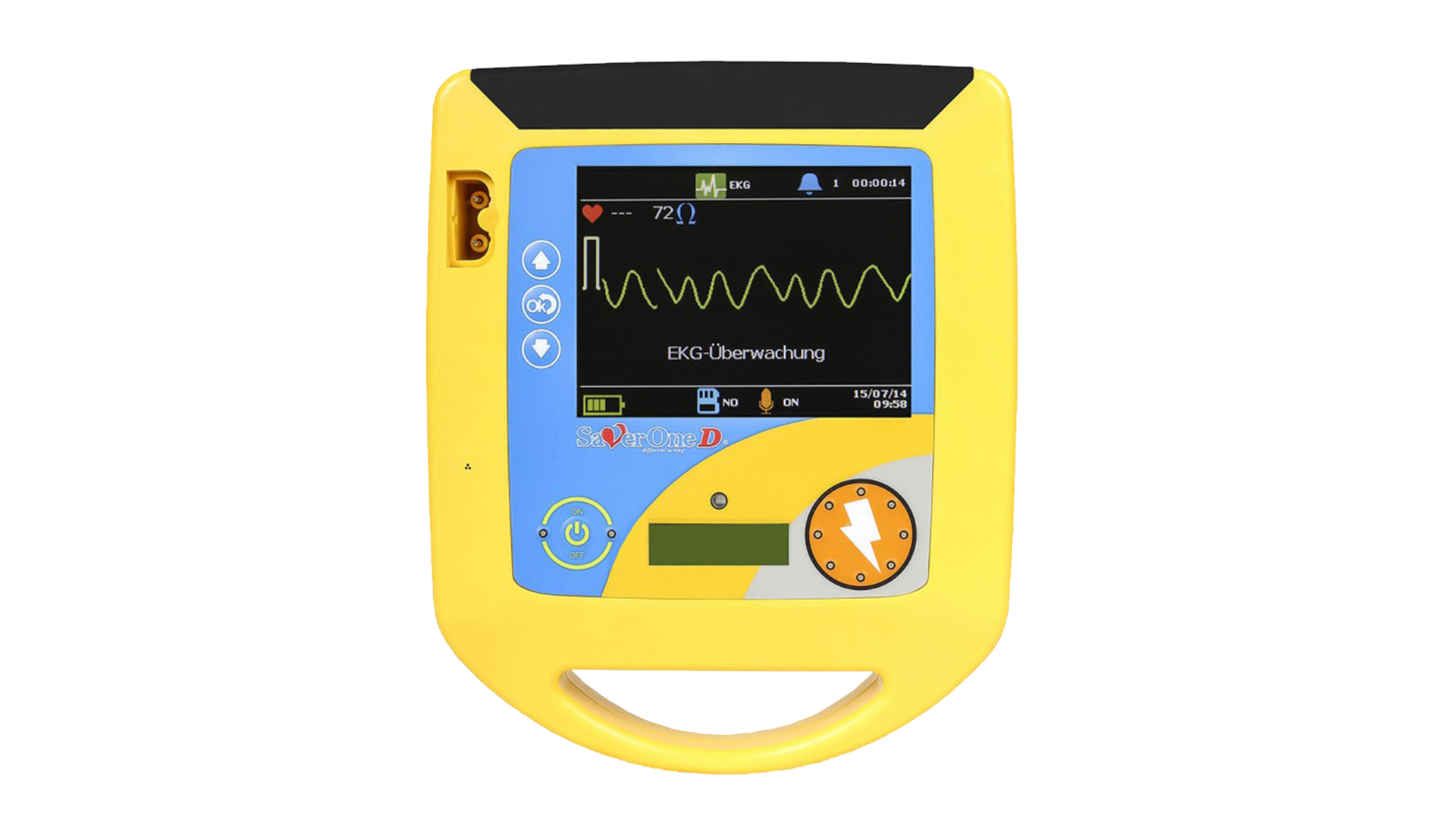

SAVER ONE D
The AED goes beyond
Semi automatic AED with ECG monitoring for paramedics and trained responders!
Rugged, small and lightweight AED with ECG Monitoring capability.
Totally reliable for trained users featuring advanced capacities to help improve lifesaving outcomes.
THE RIGHT CHOICE FOR HARSH, OUTDOOR OR MOBILE USE
While in AED mode, it allows the user to view the ECG and everything needed to know about the patient and ongoing rescue treatment on a very large full-colour interactive display (12×8 cm).
It can be switched in a ECG Monitoring mode, to allow for watch over the rhythm and heart rate while using defibrillation pads or standard ECG electrodes connected to a separate cable.
5.7” TFT Colour Display
most detailed and comprehensive screen provides valuable information to rescuers:
ABOUT DEVICE:
a battery gauge with residual capacity
the indicator of available memory for recording
a notice if the microphone is active or OFF
the local date and time, alarms.
ABOUT RESCUE:
the adult or child protocol in use
the modality in use (AED, ECG or Manual)
the fibrillation and shock counts
the elapsed rescue time
the heart rate (bpm)
the impedance (ohms)
the energy level to be delivered (joule)
a touch/not touch pictogram
ECG waveform
the R wave detection in Manual Synchronous
a charging bar graph if device charges
a CPR bar graph and cycles countdown
| MODEL NUMBERS | |
| Code SVD-B0004: | Standard Version maximum energy at 200J |
| Code SVD-B0005: | Power Version with maximum energy at 360J |
| CONFIGURATION OPTIONS (BOX CONTENT) | |
| Conf-Norm: Standard Basic Configuration | (adult pads, disposable battery, carrying case) |
| Conf-Rech: Rechargeable Configuration | (adult pads, accumulator, charger station, carrying case) |
| Conf-Print: Print Ready Configuration | (adult pads, disposable battery, carrying case, IrDa port and thermal printer) |
| Conf-Rech/Print: Rechargeable & Print Ready Configuration | (adult pads, accumulator, charger station, carrying case, IrDA port and thermal printer) |
Technical specifications
While in AED mode, it allows the user to view the ECG and everything needed to know about the patient and ongoing rescue treatment on a very large full-colour interactive display (12×8 cm).
It can be switched in a ECG Monitoring mode, to allow for watch over the rhythm and heart rate while using defibrillation pads or standard ECG electrodes connected to a separate cable
| DEFIBRILLATOR | |
| Operation: | AED Semi-Automatic; ECG Monitoring capability |
| Energies: | Standard max 200J or Power max 360J |
| Waveform: | Adaptive BTE (biphasic truncated exponential) conforming to patient chest’s impedance |
| Protocols: | Various adult shock protocols available on request |
| Factory default: | Adult Standard escalating 150, 200, 200J Adult Power escalating 200, 250, 360J Pediatric (Standard or Power) 50J fixed |
| Charging time: | ≤9 seconds with a new and fully charged battery depleted battery will result in a longer charging time |
| Analysis time: | IEC/EN 60601-2-4 from 4 to 15 seconds |
| Impedance: | 20-200 ohms |
| Sensitivity: | IEC/EN 60601-2-4 (AHADB, MITDB source), 97% |
| Specificity: | IEC/EN 60601-2-4 (AHADB, MITDB source), 99% |
| Controls: | 2 buttons: ON/OFF, shock button, and 3 buttons to surf the menu. |
| Indicators: | Status LED indicator informing on device condition Battery gauge with remaining capacity rate Audible alerts and text display with service alarms |
| Upgradeable: | through a USB cable or memory card |
| ECG MONITORING |
|
| Operations: | Through defibrillation pads or standard ECG electrodes attached to a separate 2-Lead patient monitoring reusable cable SAV-C0017 |
| ECG size: | Manual setting through the menu |
| Heart Rate: | 30-200 bpm |
| Sweep Speed: | 25 mm/sec |
| Standards: | IEC/EN 60601-2-27 less then the points 202.6.2.101; 201.12.1.101.12,13; 208.6.6.2.101 not performed for the intended use of the device, as it is not intended for environments such as operating theatres or intensive care units |
| Display: | 5,7” TFT colour, 640 x 480 pixel |
| BATTERY OPTIONS | |
| Type: | Li-SOCl2 Disposable, code SAV-C0903 |
| Autonomy: | 250 complete rescue cycles (shocks at 200J and CPR) or 160 complete rescue cycles (shocks at 360J and CPR) or 24 hours ECG analysis for a new and fully charged battery (*) |
| Shelf-Life: | when stored in original packaging 5 years (*) |
| Battery-Life: | 4 years once installed to AED, assuming one battery insertion test and daily self-test but without switching AED on (*) |
| Type: | Li-ion Accumulator, code SAV-C0011 |
| Recharging time: | 2,5 hours with the charger station code SAV-C0014 (*) (recommended to charge every 4 months at least) |
| Autonomy: | 200 shocks at 200J or 110 shocks at 360J or 14 hours in ECG Monitoring for a new fully charged accumulator (*) |
| Battery-Life: | 2 years or 300 charging cycles (*) |
| PADS OPTIONS | |
| Type: | Disposable, pre-gelled and self-adhesive |
| Adult: | Code SAV-C0846, for patient >8 years or >25 kg |
| Pediatric: | Code SAV-C0016, for patient <8 years or <25 kg |
| Cable lenght: | 120 cm |
| Shelf-Life: | 30 months |
| EVENT RECORDING | |
| Internal memory: | up to 6 continuous hours of ECG and rescue events |
| Optional memory: | Removable SD card; lenght of storage depends on card capacity: a 2GB card records up to 100 hours |
| Data recording: | “AED1LOG“ text file with detailed self-test activity “AEDFILES“ with complete recorded information |
| Event review: | “Saver View Express“ data manager software |
| PHYSICAL | |
| Size: | 26,5 x 21,5 x 7,5 cm |
| Weight: | 2,08 kg with disposable battery 2,13 kg with rechargeable battery |
| ENVIROMENTAL | |
| Operating temperature: | 0°C to 55°C (32°F TO 131°F) |
| Storing/Shipping temperature: | -40°C to 70°C (-40°F TO 158°F) without battery |
| Humidity: | 10% to 95% relative humidity non condensing |
| Sealing (IP Protection): | IEC/EN 60529 class IP54; splash proof, dust protected |
| Shock/Drop Abuse Endurance: | IEC/EN 60601-1 clause 21; 1 meter drop, impact, force, rough handling, mobile tolerance |
| Electrostatic Discharge: | IEC/EN 61000-4-2 |
| Electromagnetic Compatibility: | IEC/EN 60601-1-2 Emission, Immunity |
| Electrical Protection: | IEC/EN 60601-1; Internally Powered, Type BF/CF |
| Directive93/42/CEE and 2007/47/CE: | Class IIb |
| (*)Temperature at 20°C Humidity 45% non-condensing | |
