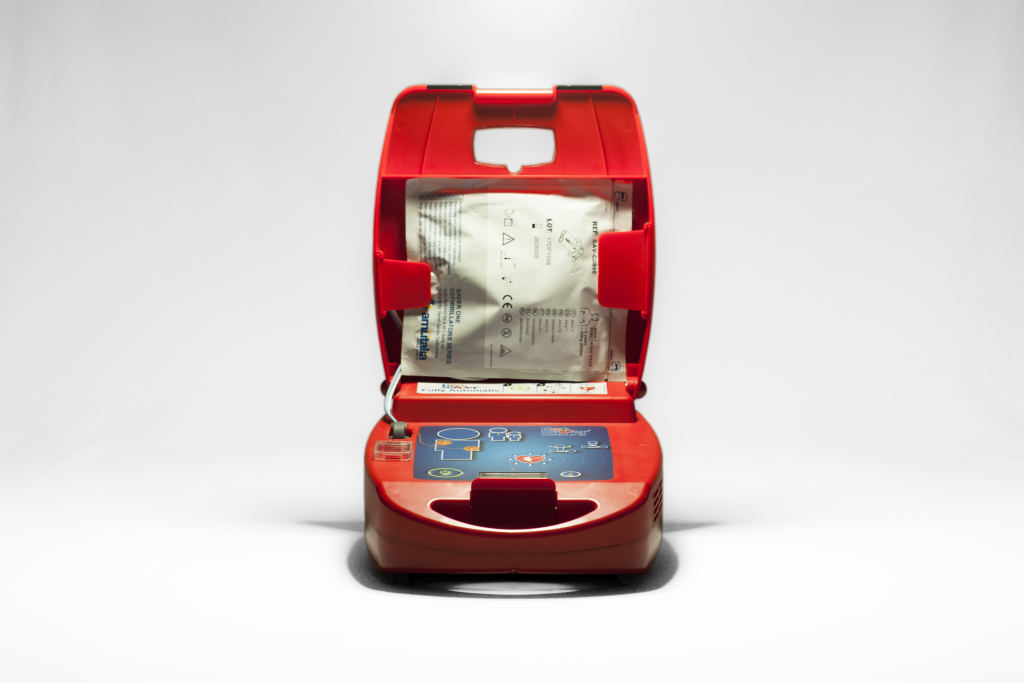

GEO SAVER AUTOMATICO
Ideato per l’uso pubblico e progettato per gestire soccorsi veloci e sicuri.
La scarica, se richiesta, verrà erogata automaticamente; mentre il VIVO BUTTON consentirà al soccorritore di chiamare il 118 direttamente dal DAE.
| MODEL NUMBERS | |
| Code SGA-B0990: | Fully Automatic Standard Version at 200J |
| Code SGA-B0991: | Fully Automatic Power Version at 360J |
| CONFIGURATION OPTIOth (BOX CONTENT) | |
| Conf-Norm: Standard Basic Configuration | (adult pads, disposable battery) |
| Conf-Rech: Rechargeable Configuration | (adult pads, accumulator, charger station) |
Technical specifications
| DEFIBRILLATORE | |
| Operazione: | Versione completamente automatica |
| Energie: | Standard max 200J o Potenza max 360J |
| Forma d’onda: | BTE adattivo (bifasico tronco esponenziale) conforme all’impedenza del torace del paziente |
| Protocolli: | Diversi protocolli di shock per adulti disponibili su richiesta |
| Default di fabbrica: | Adulto Standard crescente 150, 200, 200J Adulto Potenza crescente 200, 250, 360J Pediatrico (standard o potenza) 50J fisso |
| Tempo di carica: | ≤9 secondi con una batteria nuova e completamente carica, con una batteria non completamente carica, il tempo di carica sarà più lungo |
| Tempo di analisi: | IEC/EN 60601-2-4 da 4 a 15 secondi |
| Impedenza: | 20-200 ohms |
| Sensibilità: | IEC/EN 60601-2-4 (AHADB, sorgente MITDB), 97% |
| Specificity: | IEC/EN 60601-2-4 (AHADB, sorgente MITDB), 99% |
| Controls: | 2 buttons: ON/OFF, “i“ info button |
| Flashing Icons: | “connects pads to patient“ “adult/child“ informing on pads type use “don’t touch patient“ warning to stay clear “touch patient“ informing it’s safe to touch |
| Indicators: | Status LED indicator informing on device condition Battery gauge with remaining capacity rate Audible alerts and text display with service alarms |
| Upgradeable: | through a USB cable or memory card or by remote through AMISAVERCLOUD |
| BATTERY OPTIONS | |
| Type: | Li-SOCl2 Disposable, code SAV-C1032 |
| Autonomy: | 300 complete rescue cycles (shocks at 200J and CPR) or 200 complete rescue cycles (shocks at 360J and CPR) or 35 hours ECG analysis for a new and fully charged battery (*) |
| Shelf-Life: | when stored in original packaging 5 years (*) |
| Battery-Life: | 4 years once installed to AED, assuming one battery insertion test and daily self-test but without switching AED on (*) |
| Type: | Li-ion Accumulator, code SAV-C1033 |
| Recharging time: | 2,5 hours with the charger station code SAV-C1034 (*) (recommended to charge every 4 months at least) |
| Autonomy: | 250 shocks at 200J or 160 shocks at 360J or 21 hours in ECG analysis for a new fully charged accumulator (*) |
| Battery-Life: | 2 years or 300 charging cycles (*) |
| PADS OPTIONS | |
| Type: | Disposable, pre-gelled and self-adhesive |
| Adult: | Code SAV-C0846, for patient >8 years or >25 kg |
| Pediatric: | Code SAV-C0016, for patient <8 years or <25 kg |
| Cable length: | 120 cm |
| Shelf-Life: | 30 months |
| EVENT RECORDING | |
| Internal memory: | up to 6 continuous hours of ECG and rescue events |
| Optional memory: | Removable SD card; length of storage depends on card capacity: a 2GB card records up to 100 hours |
| Data recording: | “AED1LOG“ text file with detailed self-test activity “AEDFILES“ multimedia files with complete recorded information |
| Event review: | “Saver View Express“ data manager software |
| PHYSICAL | |
| Size: | 29,5 x 23 x 11,5 cm |
| Weight | +/- 2,65 Kg |
| ENVIROMENTAL | |
| Operating temperature: | 0°C to 55°C (32°F TO 131°F) |
| Storing/Shipping temperature: | -40°C to 70°C (-40°F TO 158°F) |
| Humidity: | 10% to 95% relative humidity non condensing |
| Sealing (IP Protection): | IEC/EN 60529 class IP56; splash proof, dust protected |
| Shock/Drop Abuse Endurance: | IEC/EN 60601-1 clause 21; 1 meter drop, impact, force, rough handling, mobile tolerance |
| Electrostatic Discharge: | IEC/EN 61000-4-2 |
| Electromagnetic Compatibility: | IEC/EN 60601-1-2 Emission, Immunity |
| Electrical Protection: | IEC/EN 60601-1; Internally Powered, Type BF |
| Directive 93/42/CEE and 2007/47/CE: | Class IIb |
| Radio Equipment Directive (RED): | Directive 2014/53/UE |
| GEOLOC MODULE | |
| Frequency: | GSM: 850, 900, 1800, 1900 MHz; UMTS: 900, 2100 MHz GPS: 1575, 1600 MHz |
| GEOLOC BATTERY OPTIONS | |
| Type: | Li-SOCl2 Disposable, code SAV-C1038 |
| Shelf-Life: | when stored in original packaging 5 years (*) |
| Battery-Life: | 4 years once installed to AED, assuming one battery insertion test and daily self-test but without switching AED on (*) |
| Type: | Li-ion Accumulator, code SAV-C1039 |
| Recharging time: | 2,5 hours with the charger station code SAV-C1040 (*) (recommended to charge every 4 months at least) |
| Battery-Life: | 2 years or 300 charging cycles (*) |
| (*)Temperature at 20°C Humidity 45% non-condensing | |
